Replace Relays and Fuses

Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amperage rating.

Locate Fuses and Relays

All electrical circuits are protected by fuses. ampere rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuses
Fuse Rating	Color
10 A	Red
15 A	Blue
20 A	Yellow
30	Green

Fuse Location

1. Park machine safely.

2. Remove right side panel.

3.

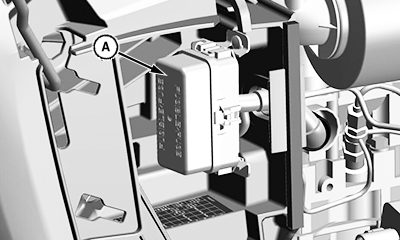

   LV26830-UN-16NOV16

   A - Load Center Cover

   Remove load center cover (A).

---




4. Identify fuse or relay in the fuse block.

5. Pull out the defective relay or fuse.

6. Replace with the new relay or fuse.

7. Install load center cover.

8. Install side panel.

Fuse and Relay Size and Function

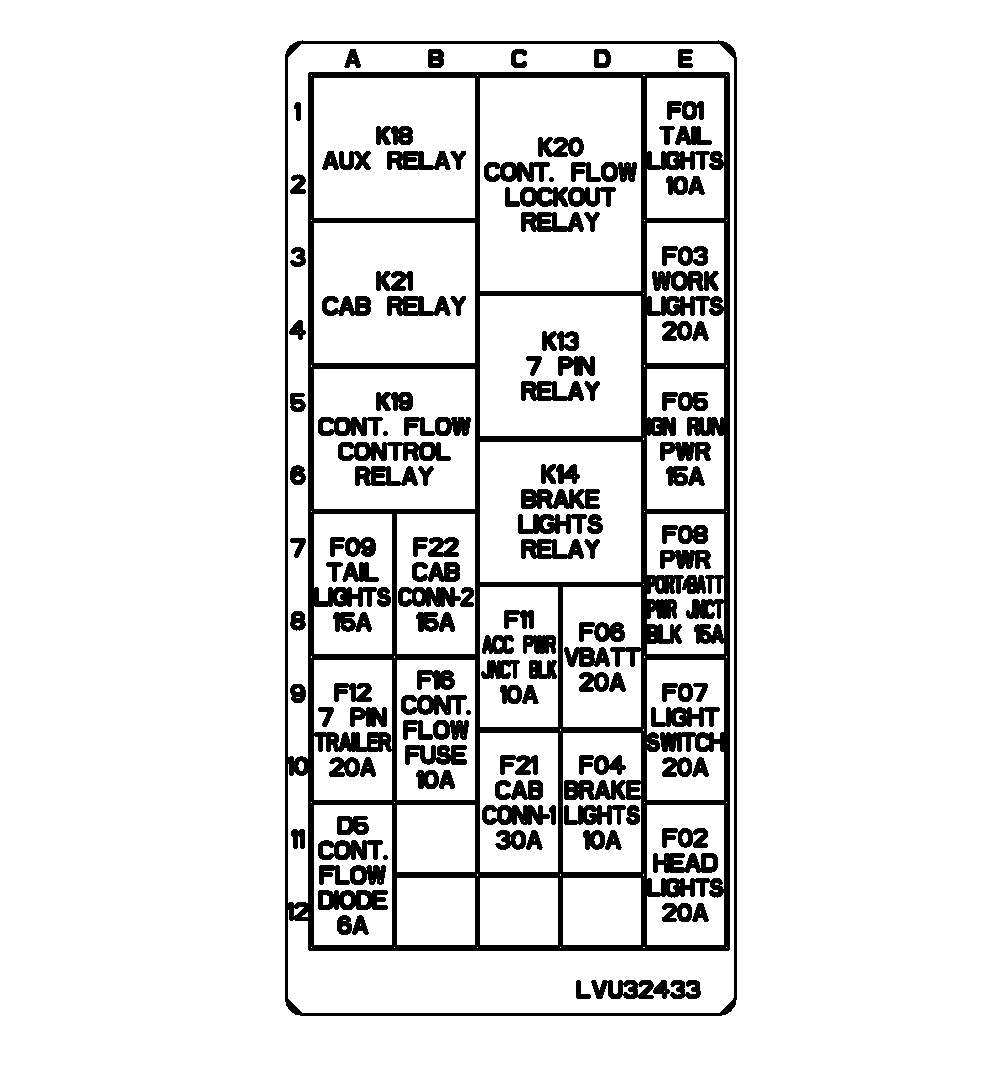

LV27285-UN-11JAN17

Fuse Label

D5 - Continuous Flow Diode (6A)

F01 - Tail Lights (10A)

F02 - F02—Head Lights (20A)

F03 - F03—Work Lights (20A)

F04 - F04—Brake Lights (10A)

F05 - F05—Ignition Power (15A)

F06 - F06—V Battery (20A)

F07 - F07—Light Switch (20A)

F08 - F08—Power Port, Battery Port, Junction Block (15A)

F09 - Tail Lights (15A)

F11 - Accessory Power, Junction Block (10A)

F12 - 7 Pin Trailer (20A)

F16 - Continuous Flow Fuse (10A)

F21 - Cab Connection (30A)

F22 - Cab Connection (15A)

K13 - 7 Pin Relay

K14 - Brake Lights Relay

K18 - Auxiliary Relay

K19 - Continuous Flow Lockout Relay

K20 - Continuous Flow Lockout Relay

K21 - Continuous Flow Lockout Relay

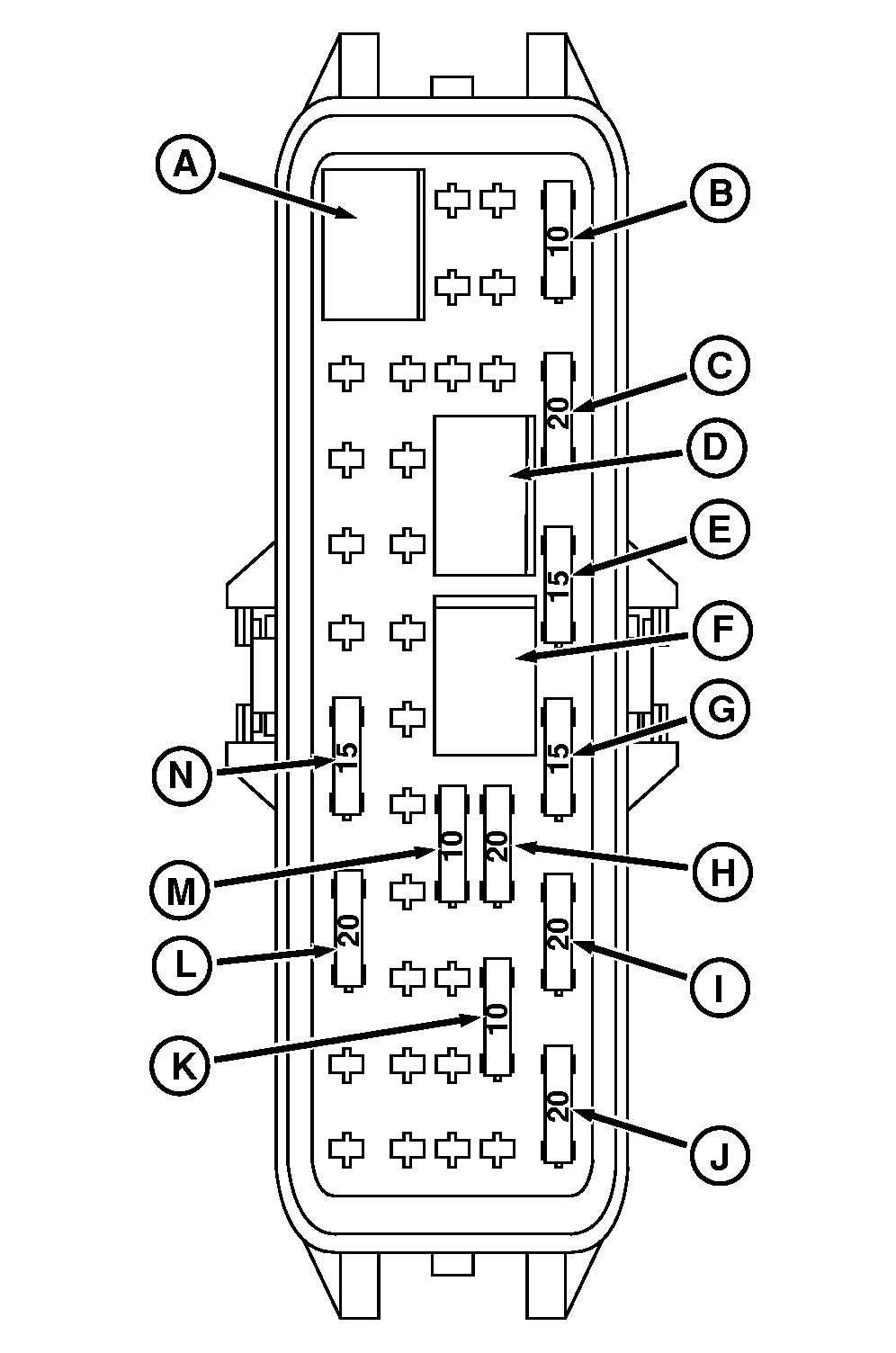

LV27286-UN-11JAN17

Load Center

A - K18—Auxiliary Relay

B - F01—Tail Lights (10A)

C - F03—Work Lights (20A)

D - K13—7 Pin Relay

E - F05—Ignition Power (15A)

F - K14—Brake Lights Relay

G - F08—Power Port, Battery Port, Junction Block (15A)

H - F06—V Battery (20A)

I - F07—Light Switch (20A)

J - F02—Head Lights (20A)

K - F04—Brake Lights (10A)

L - F12—7 Pin Trailer (20A)

M - F11—Accessory Power, Junction Block (10A)

N - F09—Tail Lights (15A)
