Front Tow Points

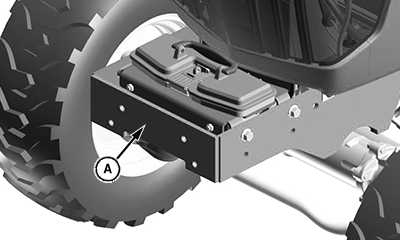

Front Tow Point

LV28427
LV28427-UN-16MAY17

Connect to the front frame (A) as necessary for towing the tractor. Use an appropriate towing device, such as a chain, for towing the tractor.

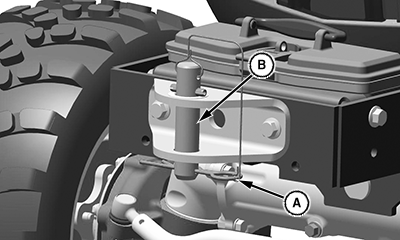

Front Tow Hitch (If Equipped)

  1. LV27290
    LV27290-UN-17JAN17

    A - Locking Pin

    B - Hitch Pin

    Remove spring locking pin (A).


  2. Remove hitch pin (B) from hitch bracket.

  3. Align holes in implement with holes in hitch bracket.

  4. Install pin through hitch bracket and implement.

  5. Install spring locking pin.

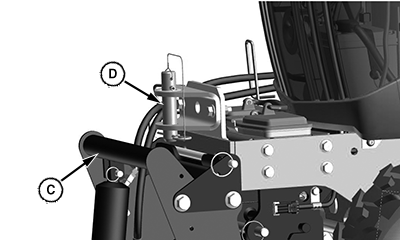

Front Tow Point with Front Quick Hitch Installed

LV28313
LV28313-UN-08MAY17

Front Towing with Front Quick Hitch Installed

C - Cross Bar

D - Front Tow Hitch

When a front quick hitch is installed, the cross bar (C) or the front tow hitch (D) can be used as the towing connection point.

UP00731,0000156-19-20170531
