Front Loader Mounting Frames, Installation

1.

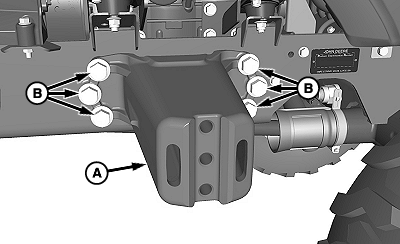

   W27269-UN-24FEB16

   Right-Hand Side Shown


   W27848-UN-06FEB17

   Torque Sequence

   A - Mounting Frame

   B - Cap Screw and Nut, M16 x 60 (12 per side)

   Install mounting frame (A) onto the tractor side frame using cap screws and nuts (B). Tighten cap screws (B) in sequence shown to specifications.

   Cap Screws (B)	Torque	250 N·m (184 lb·ft)

---




2.

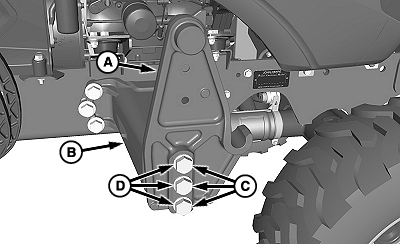

   W27270-UN-24FEB16

   Right-Hand Side Shown

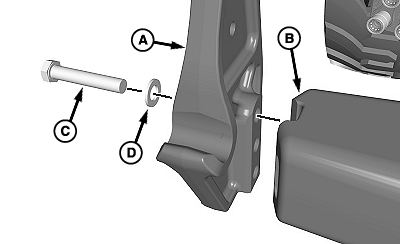

   W27271-UN-24FEB16

   Right-Hand Side Shown

   A - Loader Mast

   B - Mounting Frame

   C - Cap Screw, M16 x 90 (6 used)

   D - Washer (6 used)

   Install masts (A) onto mounting frames (B) using cap screws (C) and washers (D). Tighten cap screws to specifications.

   Cap Screws (B)	Torque	320 N·m (236 lb·ft)

---




3. Repeat procedure on the opposite side.
