Lubricate Main Driveline

LV28319
LV28319-UN-09MAY17

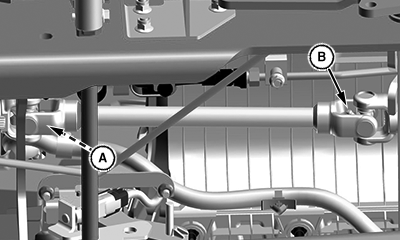

Main Driveline

A - Main Driveline—Front

B - Main Driveline—Rear

Lubricate the front (A) and rear (B) main driveline grease fittings using John Deere multi-purpose grease.

UP00731,00002EF-19-20170509
