Battery Isolation / Disconnect

LV26196
LV26196-UN-22SEP16

LV26034
LV26034-UN-26JUL17

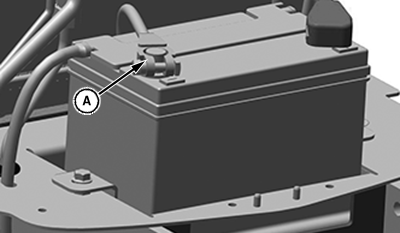

A - Black Negative Cable

Disconnect the battery before storing the machine. Read your operator’s manual before proceeding.

  1. Use a 13mm wrench to disconnect battery cable from terminal.
  2. Disconnect black negative (-) cable (A) from battery terminal.
  3. Disconnect red positive (+) cable from battery terminal.

UP00731,000030A-19-20160926
