Operate 3rd Selective Control Valve (SCV)

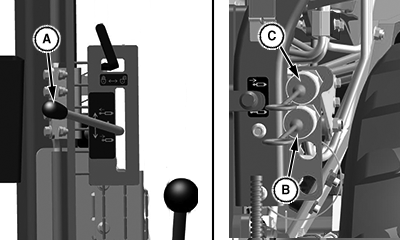

LV28418-UN-18MAY17

Open Operator Station

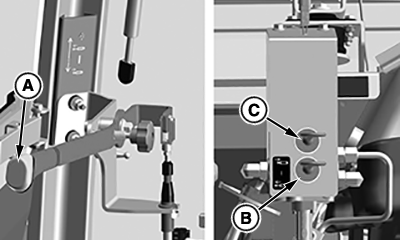

LV28419-UN-30JAN19

Cab

A - Control Lever

B - Bottom Outlet

C - Top Outlet

The 3rd SCV provides flow functionality for operating rear motor-driven attachments.

Move control lever (A) up to allow flow to the bottom outlet (B). Move control lever (A) down to return flow to the top outlet (C).
