Install Drift Blades

1.
   MXT013813-UN-08MAY15

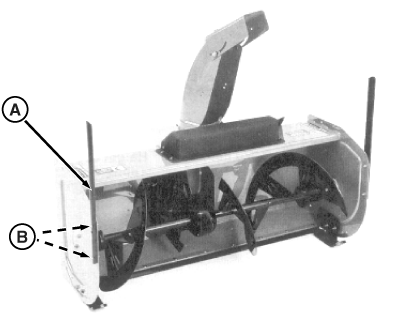

   Note, shown with second optional drift blade. One included with snowblower.

   A - Drift Blade

   B - Cap Screw, M6x25

   Install drift blade (A) with cap screws and locknuts to outside of attachment housing.

---




2. Tighten nuts.

NOTE: Quick coupler kit BXX11234 is required to connect quick-hitch snowblower kit BLV10793 with single point hydraulic connection kit BXX10283.
