Instrument Control Panel

PY38945-UN-25SEP17

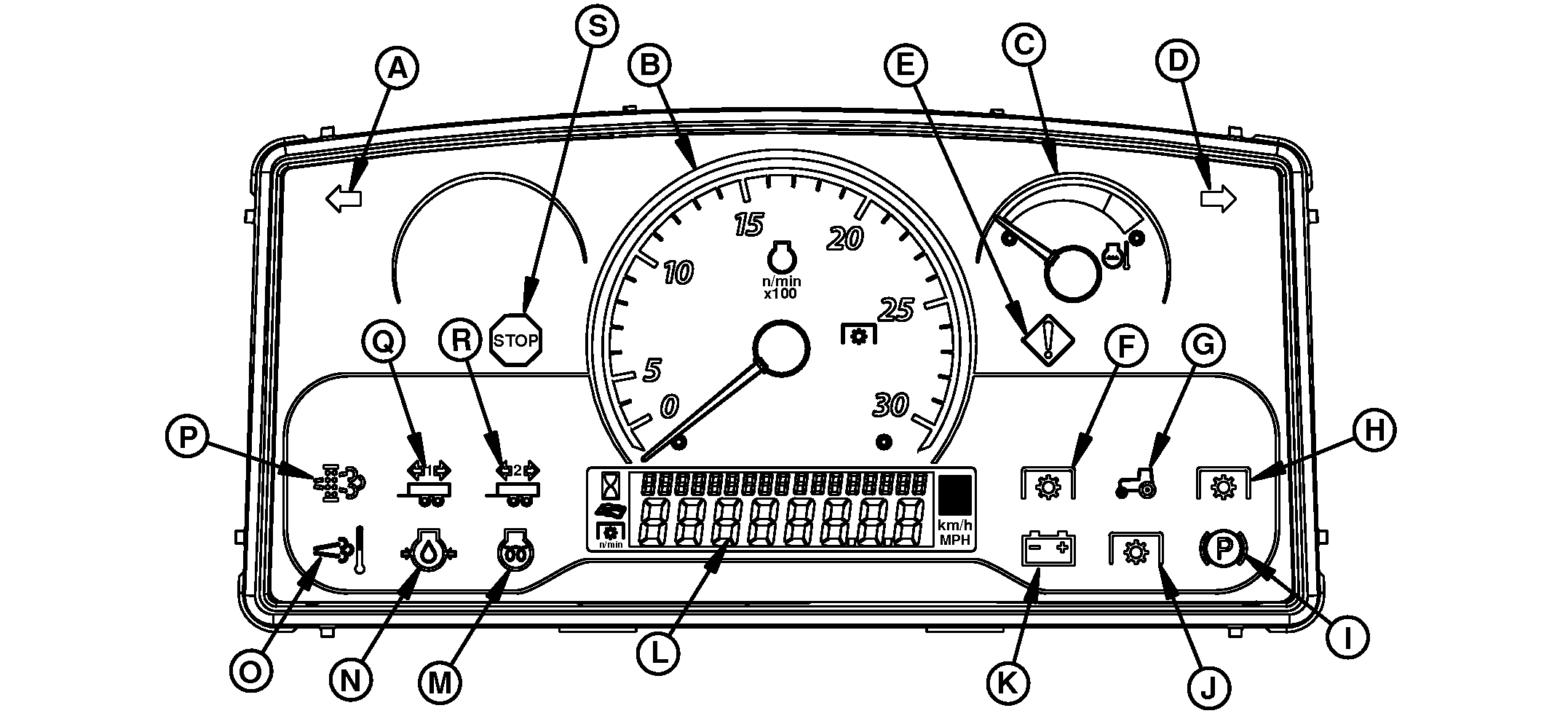

Instrument Control Panel

B - Tachometer - Displays engine speed in increments of 100.

C - Engine Coolant Temperature Gauge - Indicates temperature of the cooling system.

D - Right Turn Signal/Warning Flasher Indicator Light - Right turn signal, hazard light, and the headlight/taillight ON indicator light.

E - Service Alert Indicator - Light flashes indicating performance or operational problem is detected that needs to be resolved as soon as possible.

F - Front PTO Indicator Light - Not Used.

G - PTO Indicator Light - Not Used.

H - Rear PTO Indicator Light - Not Used.

I - Parking Brake Light - Illuminates when ignition key is in ON position and the park brake is engaged.

J - Not Used

K - Alternator/Battery Charging Light - Illuminates when the ignition key is in ON position and the engine is not running. It also indicates that an electrical load has exceeded alternator capacity and continued operation could deplete battery reserve.

L - Information Display - Displays operational information.

M - Engine Glow Plug Indicator Light - Illuminates when the engine controller (ECU) determines the need for engine pre-heating. Time depends on ambient temperature.

N - Engine Oil Pressure Light - Illuminates when there is insufficient engine oil pressure to continue operation.

O - High Exhaust Temperature Indicator (If equipped) - Illuminates when the temperature is high enough inside the exhaust filter to allow active filter cleaning.

P - Exhaust Filter Indicator (If equipped) - Illuminates when soot levels in the filter are high and exhaust filter cleaning is needed.

Q - Trailer 1 Indicator - Not Used.

R - Trailer 2 Indicator - Not Used.

S - Stop Indicator - Light flashes when a serious malfunction is detected.
