Use Dash Panel Module (3025E)
PY28633-UN-01AUG17
|

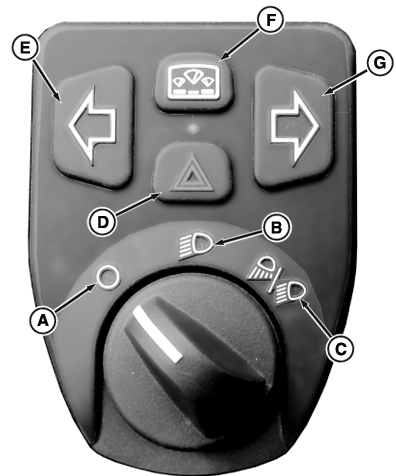

Dash Panel Module (3025E) |
||||||
|---|---|---|---|---|---|---|
|
Activated Switch on Module |
Use |
Right Amber Light |
Left Amber Light |
Tail Lights |
Work Lights |
Head Lights |
|
A - Off |
Field, Day Time |
Off |
Off |
Off |
Off |
Off |
|
B - Road Lights |
On Road, No Traffic, Night Time |
Off |
Off |
On |
Off |
On |
|
C - Work Lights |
Off Road, Night Time |
Off |
Off |
On |
On |
On |
|
D - Hazard Lights |
On Road, Day Time, Night Time |
Flashing |
Flashing |
On |
Off |
On |
|
E - Left Turn Signal |
On Road, Day Time, Night Time |
Flashing |
On |
On |
Off |
On |
|
G - Right Turn Signal |
On Road, Day Time, Night Time |
On |
Flashing |
On |
Off |
On |
To deactivate lights turn the module knob to (A).
To activate road lights turn the module knob to (B).
To activate work lights turn the module knob to (C).
To activate or deactivate the left turn signal press (E).
To activate or deactivate the right turn signal press (G).
To activate or deactivate the hazard lights press (D).
To cycle through the dash board information press (F).
|
GS25068,0003D59-19-20180122 |
