Drive Machine

Avoid injury! Always check area around the machine for bystanders and obstacles before operating the machine.

Avoid damage! To prevent transmission damage, stop machine motion completely before shifting the range shift lever.

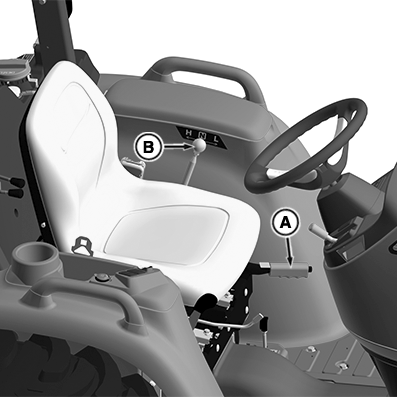

LV29908-UN-19JAN18

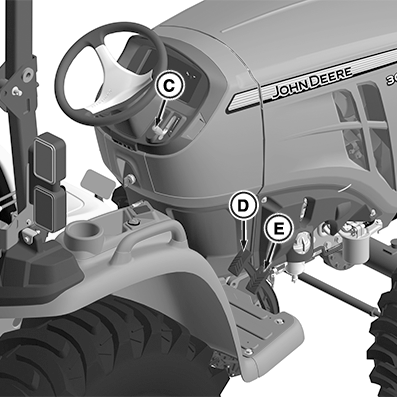

LV29909-UN-19JAN18

A - Park Brake Lever

B - Transmission Range Lever

C - Throttle Lever

D - Forward Pedal

E - Reverse Pedal

1. Start machine engine.
2. Unlock park brake (A).
3. Choose low “L” or high “H” speed range on the range shift lever (B).
4. Move throttle lever (C) to desired operating speed.
5. Slowly depress forward travel pedal (D) downward to move forward. Slowly depress reverse travel pedal (E) downward to move in reverse.
6. Release travel pedal to stop machine and change speed range.
7. Fully stop machine motion before turning ignition key switch to off position.
