Operate 3-Point Hitch

The 3-point hitch on your machine is classified as a limited Category 1 hitch.

PY38962-UN-17JUL17

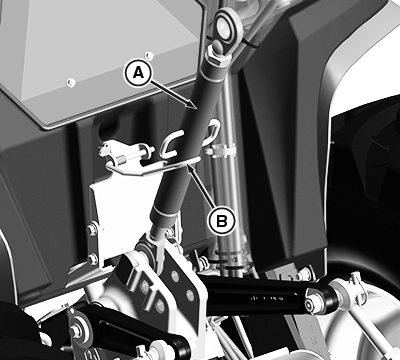

A - Center Link

B - Storage Hook

Place center link (A) in the storage hook (B) when hitch is not in use.

PY38963-UN-17JUL17

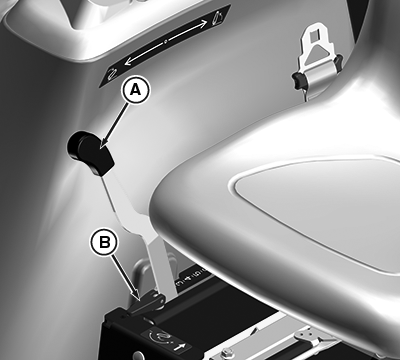

A - Rockshaft Lever

B - Depth Stop Lever

Use rockshaft lever (A) to raise and lower equipment attached to the 3-point hitch.

• To lower implement: Push lever forward.
• To raise implement: Pull lever rearward.

Position control can be used to maintain the operating depth of the implement. To adjust the operating depth:

1. Unlock the depth stop lever (B) and slide toward the front of the console completely.

2. Operate the implement for several minutes to determine the desired operating depth.

3. Slide the depth stop against the rockshaft lever and lock it in position.

   • The calibrated label settings below the rockshaft lever are for reference only and do not signify specific operating depths.
     The implement operates in same position each time the rockshaft lever is pushed against the depth stop.
