Position Center Link

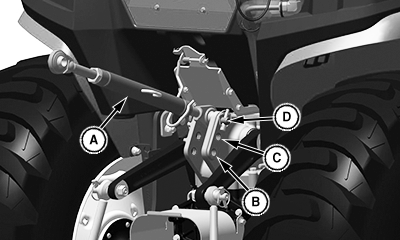

LV29169-UN-08SEP17

A - Center Link

B - Light to Medium Draft Loads

C - Medium to Heavy Draft Loads

D - Very Heavy Draft Loads

• For light and medium draft loads: Install center link (A) in the bottom hole (B) of mounting bracket. Example of light and medium draft load implements include a landscape rake. A category 1 implement tilts forward while raising in this position.
• For medium and heavy draft loads: Install center link in the middle hole (C) of mounting bracket. Example of medium and heavy draft load implements include a tiller or box blade. A category 1 implement tilts forward slightly while raising in this position.
• For heavy draft loads: Install center link in the top hole (D) of mounting bracket. Example of heavy draft load implements includes a plow or ripper. A category 1 implement rises, but angle remains constant.
