Operate Selective Control Valve (SCV) Lock Lever

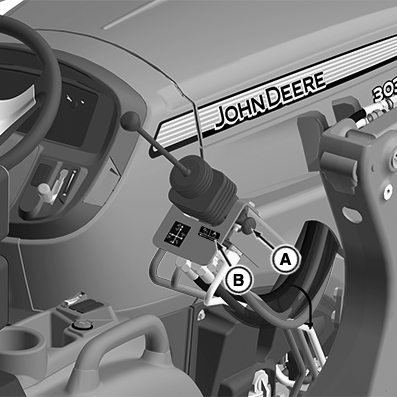

LV29911-UN-19JAN18

A - Lock Lever

B - Label

• Push the lock lever (A) to allow SCV lever movement in all directions. Operation of the SCV is unlocked.
• Pull the lock lever (A) to prohibit SCV lever movement in all directions. Operation of the SCV is locked.
• Operation of the lock lever is indicated on label (B).
