Operate Selective Control Valve (SCV)

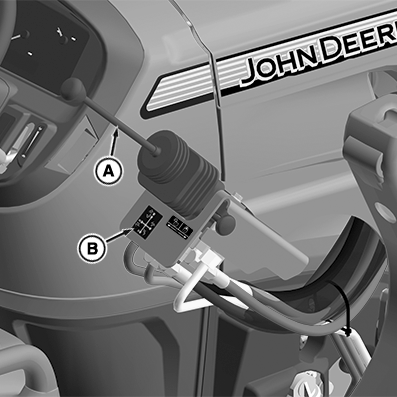

LV29910-UN-19JAN18

A - Selective Control Valve Lever

B - Information Label

This machine series is equipped with a hydraulic Selective Control Valve (SCV) and hydraulic outlets to operate the hydraulic front end loader.

The loader mounted SCV ports are color marked for easy hookup.

Front end loader hoses are also marked with color tie-bands. Match the color marked hose ends to the color marked ports on the SCV when making connections.

The SCV lever (A) controls the oil flow to the corresponding SCV ports. Refer to the information label (B) for assistance during operation.

• SCV Lever Left—Bucket Curl
• SCV Lever Right—Bucket Dump
• SCV Lever Forward—Boom Lower
• SCV Lever Rearward—Boom Raise

Boom Float—Move the lever to the full forward or “float” position to remove pressure in both connector lines. this allows the loader to follow the contour of the ground without down force pressure.

Refer to information label (B) for assistance. See your implement Operator’s Manual for implement functions which correspond to lever positions.
