Operate Hydraulic Dual Rear (SCV) Selective Control Valve

Avoid injury! Escaping fluid under high pressure can penetrate the skin and cause serious injury. Avoid the hazard by relieving pressure before connecting hydraulic or other lines. Tighten all connections before applying pressure.

• Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.
• If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, United States. In the United States and Canada only, this information may be obtained by calling 1-800-822-8262.

Avoid damage! To prevent contamination of female quick couplers, install color-coded hose ends in the couplers when not being used.

This machine can be equipped with an optional dual rear hydraulic selective control valve (SCV) outlet kit to operate hydraulically driven implements from outlets at the rear-mount position.

The machine-mounted hydraulic outlets are female quick couplers.

V Rear Outlet Selective Control Valve (SCV)

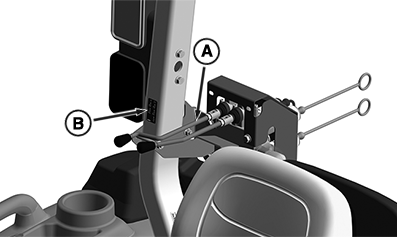

LV29912-UN-25JAN18

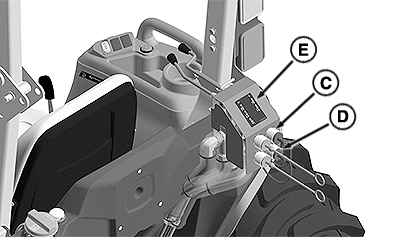

LV29913-UN-25JAN18

A - IV Rear Selective Control Lever

B - Information Label

C - Coupler

D - Coupler

E - Information Label

• Cylinder Extend—Push V rear selective control lever (A) downward to allow flow from the circuit out through coupler (D) and return to the machine through coupler (C).
• Cylinder Retract — Push V rear selective control lever (A) upward to allow flow from the circuit out through coupler (C) and return to the machine through coupler (D).

Refer to the information labels (B and E) for assistance. See your implement operator manual for implement functions which correspond to lever positions.

IV Rear Outlet Selective Control Valve (SCV)

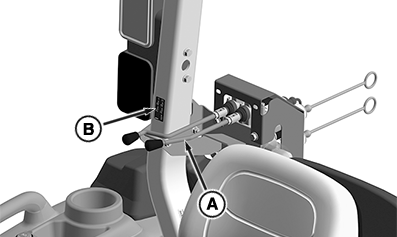

LV29914-UN-25JAN18

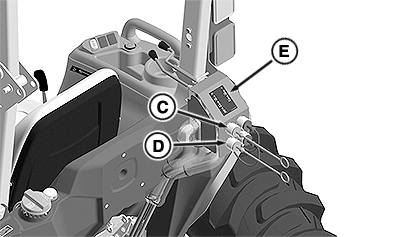

LV29915-UN-25JAN18

A - IV Rear Selective Control Lever

B - Information Label

C - Coupler

D - Coupler

E - Information Label

• Cylinder Extend—Push IV rear selective control lever (A) downward to allow flow from the circuit out through coupler (D) and return to the machine through coupler (C).
• Cylinder Retract — Push IV rear selective control lever (A) upward to allow flow from the circuit out through coupler (C) and return to the machine through coupler (D).

Refer to the information labels (B and E) for assistance. See your implement operator manual for implement functions which correspond to lever positions.

Float Position (IV Rear Outlet SCV)

“Float” operation allows cylinder to extend and retract freely, such as when an implement follow ground contour.

• Push lever forward, through retract, into detent to operate “float” feature.
• Manually return lever to neutral when “float” is no longer required.
