Check and Clean Fuel Filter Sediment Bowl and Replace Filter (3032E and 3038E)

Avoid injury! Fuel vapors are explosive and flammable:

• Do not smoke while handling fuel.
• Keep fuel away from flames or sparks.
• Shut off engine before servicing.
• Cool engine before servicing.
• Work in a well-ventilated area.
• Clean up spilled fuel immediately.

Checking Sediment Bowl

1. Park machine safely. Allow engine to cool.

2. Check fuel sediment bowl. If water and deposits are detected, remove bowl and replace fuel filter.

Cleaning Sediment Bowl and Replacing Fuel Filter

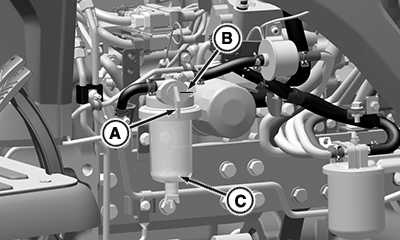

PY28641-UN-11AUG17

A - Fuel Shutoff Valve

B - Closed Position

C - Sediment Bowl

1. Move the fuel shutoff valve (A) to closed position (B).

2. Position drain pan under fuel filter sediment bowl (C).

3. Turn sediment bowl counterclockwise to remove.

4. Remove and discard the fuel filter.

5. Clean bowl.

6. Install new filter to filter head.

7. Install sediment bowl.

8. Open fuel shutoff valve.

9. Fuel system is self-bleeding.

   Turn key to the ON position for 10—15 seconds before attempting to start, electric pump purges air from sediment bowl.

Replacing Fuel Filter

1. Park machine safely. Allow engine to cool.

2. Close fuel shutoff valve.

3.

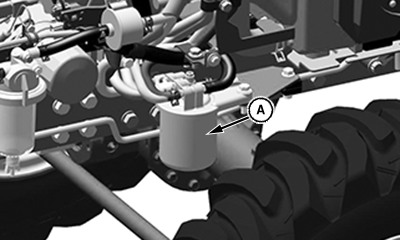

   LV29170-UN-08SEP17

   A - Fuel Filter

   Position drain pan under fuel filter (A) to catch fuel spillage.

---




4. Turn filter counterclockwise to remove and discard.

5. Apply fuel to surface of new filter gasket.

6. Install new filter to filter head. Tighten to one complete turn after filter contacts head.

7. Open fuel shutoff valve.
