Remove and Install Battery

Remove:

  1. Park machine safely.

  2. Raise the hood.

  3. Remove side panels.

  4. Disconnect headlight harness at fan shroud.

  5. Slide grille up.

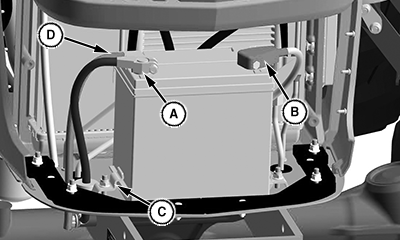

  6. LV29342
    LV29342-UN-08SEP17

    A - Negative (—) Cable

    B - Positive Terminal Cover

    C - Hold Down Bracket

    D - Vent Tube

    Disconnect black negative (-) cable (B) from the battery terminal first.


  7. Slide red positive terminal cover (C) back and disconnect red positive (+) cable from the battery terminal.

  8. Remove hold down bracket (C) from both sides of battery tray.

  9. Pull battery vent tube (D) from the battery tray.

  10. Remove the battery.

Install:

  1. Position battery in the machine.

  2. Route battery vent tube through the hole in the battery tray.

  3. Install hold down brackets securing battery to battery tray.

  4. Connect positive (+) cable to battery first, then attach negative (-) cable to the battery.

  5. Apply spray lubricant on the battery terminals to help prevent corrosion.

  6. Position red positive battery terminal cover on the red positive (+) cable.

  7. Slide grille back into position.

  8. Connect headlight harness at fan shroud.

  9. Install side panels.

  10. Lower the hood.
