Change Front Axle Oil

1. Warm front axle oil by operating machine.

2. Park machine safely.

3.

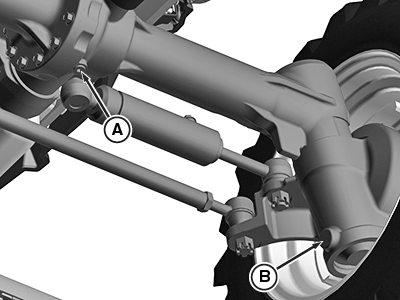

   PY46002-UN-17JUL17

   A - Differential Drain Plug

   B - Front Axle Drain Plug

   Position drain pan under the differential drain plug (A).

---




4. Remove the differential drain plug and allow oil to drain.

5. Position drain pan under the front axle drain plug (B).

6. Remove the drain plug and allow oil to drain.

7. Position drain pan under the axle on the other side and repeat the procedure.

8. Install and tighten both drain plugs after all oil has drained.

9.

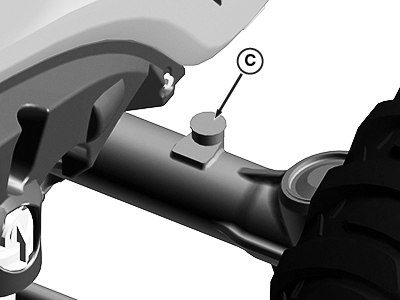

   PY46003-UN-17JUL17

   C - Dipstick

   Remove dipstick (C) on the right side of the front axle.

---




10. Add recommended oil through dipstick fill opening until oil level is correct.

11. Install and tighten the dipstick.

12. Check front axle oil level.
