Lubricate 3-Point Hitch (If Equipped)

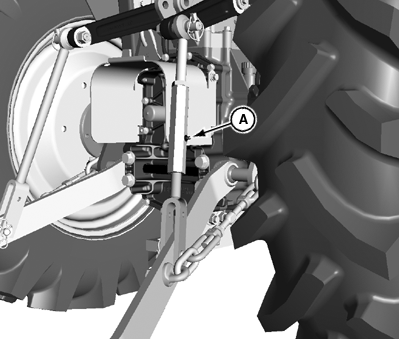

  1. LV17122
    LV17122-UN-21MAR13

    A - Lift Link Grease Fitting

    Lubricate lift link grease fitting (A) with recommended grease or equivalent.

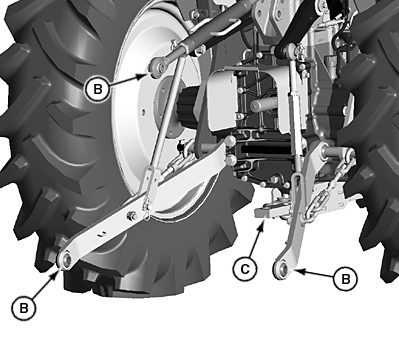

  2. LV17112
    LV17112-UN-21MAR13

    B - Ball Joints

    C - Drawbar Hitch

    Lubricate ball joints (B) and drawbar hitch (C) with the SUPER LUBE® lubricant.1


1 SUPER LUBE is a registered trademark of Synco Chemical Corp.

GS25068,0003D77-19-20180122
