Lift Points for Jacking up the Tractor

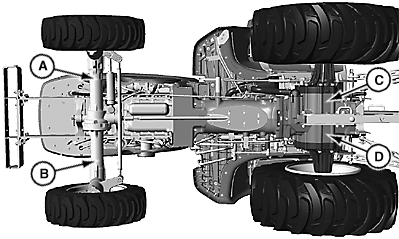

The illustrations show the recommended lifting points for jacking up the tractor. Use a stable jack with sufficient lifting force.

LV18870-UN-23AUG13

A - Raise left end of axle to remove left front wheel at this point

B - Raise right end of axle to remove right front wheel at this point

C - Raise left rear of tractor to remove left rear wheel at this point

D - Raise right rear of tractor to remove right rear wheel at this point
