Inspect ROPS for Loose Hardware

Make certain all parts are reinstalled correctly if the roll-over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to proper torque. The protection offered by ROPS is impaired if ROPS is subjected to structural damage, is involved in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged ROPS must be replaced, not reused.

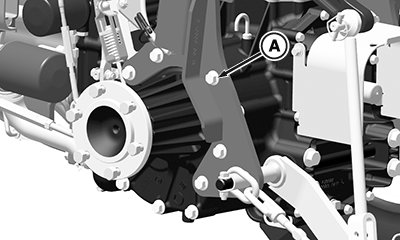

PY28629-UN-26JUL17

A - Bolt (5 each side)

Tighten the ROPS attaching hardware on each side of the ROPS to specification.

Mounting Bolts (A)	Torque	95 N·m (70 lb·ft)
