Use Optional Front Weights

Avoid damage! Do not install weights on the front bumper plate, damage to can occur to the front grille. Use optional bolt-on weight bracket for front weights.

LV29171-UN-08SEP17

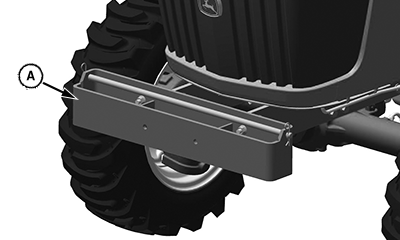

A - Front Weight Bracket

Front weight bracket (A) is an optional bolt-on to the machine frame. The bracket holds up to ten Quick-Tatch™ weights.

Each weight is 19 kg (42 lb).

Quik-Tatch™ weights and attaching hardware are available at your John Deere dealer.

See your implement operator’s manual for installation and required number of weights to use.
