Start the Engine

Avoid Injury! Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

• Move the machine to an outside area before running the engine.
• If running engine in an enclosed area, make sure that there is adequate ventilation.
• To direct exhaust fumes out of the area, connect a pipe extension to the engine exhaust pipe.
• To clear out the exhaust fumes, allow fresh outside air into the work area.

If operating machine in temperatures below -18°C (0°F), installation of the optional engine block heater and hydraulic oil heater is recommended.

If temperature is below 0°C (32°F), follow the additional cold weather starting aids.

1.

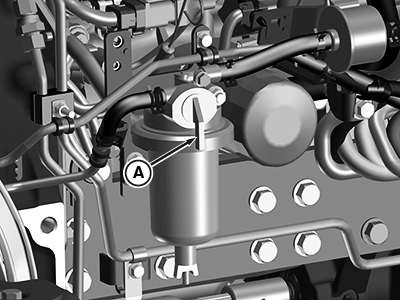

   PY28631-UN-28JUL17

   Fuel Shutoff Valve

   A - Fuel Shutoff Valve

   Open the fuel shutoff valve (A).

---




2. Lock the park brake.

3.

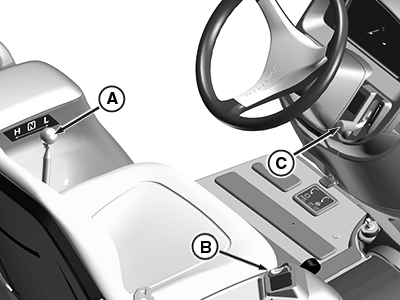

   PY38948-UN-28JUL17

   A - Transmission Range Lever

   B - PTO Switch Knob

   C - Hand Throttle Lever

   Move the transmission range lever (A) to the N position.

---




4. Confirm PTO switch knob (B) is in the disengaged/off position.

5. Avoid Injury! Check to be sure that area is clear of any bystanders before lowering implements to the ground.

   Lower any implements to the ground.

6. Set hand throttle lever (C) to the 1/2-3/4 fast position.

7. Turn ignition key switch to the ON position.

8. Check indicator lights:

   • All indicator lights illuminate.
   • All gauges do a full sweep and return to normal.



9. Avoid Damage! Starter can be damaged if the starter is operated for more than 20 seconds at a time:

   Wait two minutes before trying again if engine does not start.

   Turn key switch to START position. Release key when engine starts.

   If engine does not start, cycle the key back to the off position and restart the procedure.

10. Check indicator lights:

    • Engine oil pressure light should go out after 5 seconds of the engine running. If it does not go out, the engine oil pressure may be too low. Stop the engine and check for cause.
    • Alternator/battery charging light should go out after 10 seconds of the engine running. If it does not go out, set the engine speed at full throttle.



11. Set hand throttle lever to the 1/2 fast position for 1 minute without load.
