Use Brake/Differential Lock Pedal (Traction Assist)

Avoid Injury! Driving at high speeds with the traction assist engaged results in loss of steering control. Do not engage traction assist or turn with the traction assist engaged while operating machine at high speeds or on slopes.

Avoid Damage! Using the traction assist function improperly damages the transaxle:

• Reduce speed and allow drive wheels to rotate at same speed before engaging or disengaging traction assist.
• Disengage traction assist when driving on the dry asphalt or concrete.
• Use traction assist only when necessary for improved ground engagement.

Turning radius is increased when the differential lock is engaged.

The differential lock is used to provide better traction when rear wheels start to slip. With the differential lock engaged, the right and left side rear axles are locked together and both rear wheels turn at equal speeds for maximum traction.

Engage Differential Lock

1. Stop or slow machine movement.

2. Differential lock remains engaged as long as rear wheel slippage occurs. If tires slip and regain traction repeatedly, hold down pedal with foot so differential lock remains engaged.

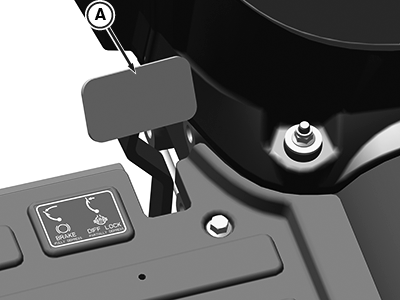

   PY38958-UN-17JUL17

   A - Differential Lock Pedal

   To engage differential lock, push down on the differential lock pedal (A) by 20—25 mm (3/4—1 in).

---

Disengage Differential Lock

Rear wheel slippage keeps differential lock engaged. Lock automatically disengages when traction equalizes.
