Adjust Seat

  1. PY38969
    PY38969-UN-17JUL17

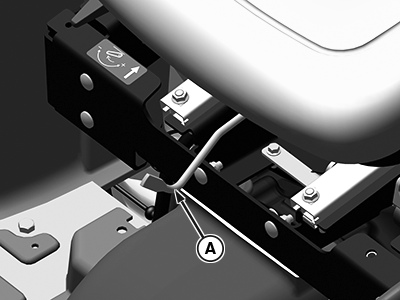

    A - Seat Lever

    Sit on seat.


  2. Pull seat lever (A) sideways to unlock seat position.

  3. Slide seat forward or rearward to desired position where all controls can be easily reached.

  4. Release lever to lock seat in position.

GS25068,0003DD4-19-20180126
