Front Loader Installation

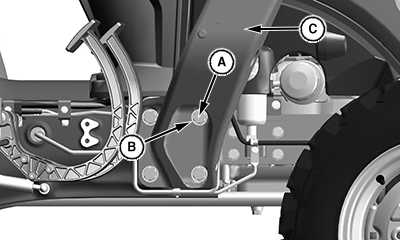

LV29472-UN-03OCT17

Right Side Shown

A - M16 x 45 Hex Head Cap Screw (4 Used)

B - Washer (4 Used)

C - Mounting Frame

Hardware
Hex Head Screw
Quantity	4 per side
Drive Size / width across flats	24mm
Standard	JDS121
Thread	16mm
Length	45mm
Grade	10.9

The following procedures apply to both right and left-hand sides.

1. Park machine safely.

2. Install mounting frame (C) as shown.

3. Fasten using eight washers (B) and four M16 x 45 hex head cap screws (A).

4. Tighten mounting hardware and torque to specification.

5. Repeat on opposite side.

M16 x 45 Hex Head Cap Screw	Force	275 N·m (62 lb·ft)
