Use Power Beyond Outlet—If Equipped

Avoid damage to the hydraulic system. The power beyond hydraulic circuit must be routed to tank at all times during machine operation. DO NOT operate the machine without the power beyond hose connected to “+P” Port or without a suitable hydraulic attachment installed that connects to the “+P” port and tank “T” port.

Power beyond is designed for applications where continuous high volume hydraulic oil flow is needed.

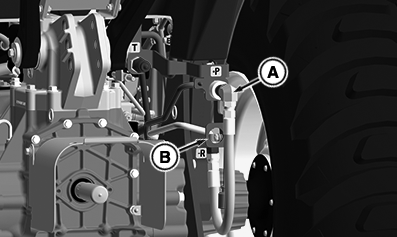

  1. LV29941
    LV29941-UN-24JAN18

    A - Power Beyond Hose

    B - Storage Location

    Shut off engine.
  2. Disconnect power beyond hose (A) from quick connect coupler.
  3. Remove cover from port “T” and place cover on hose (A).
  4. Place hose (A) in storage location (B).
  5. Connect implement pressure supply hose to port “P”.
  6. Connect implement return hose to port “T”.

GS25068,0003E0A-19-20180201
