Operate Key Switch

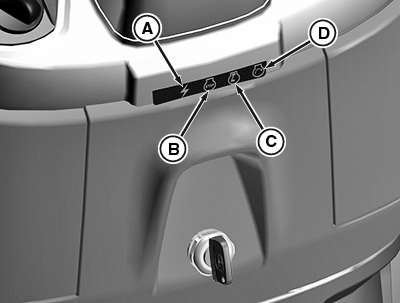

PY46078
PY46078-UN-01AUG17

A - ACCESSORY Position — Push in and turn key to ACCESSORY position to power electrical functions.

B - OFF Position — All switched power is off, and engine is off

C - ON Position — Move key from OFF to this position and the engine oil pressure light and battery charging light turns on and activate the glow plugs for 5 seconds. You will also hear the engine fuel shutoff solenoid engage with a click.

D - START Position — Move key from ON to this position and the starter engages the engine flywheel to start the engine. Release the key to the ON position.

SK35149,000110C-19-20170728
