Operate Throttle

PY38946
PY38946-UN-28JUL17

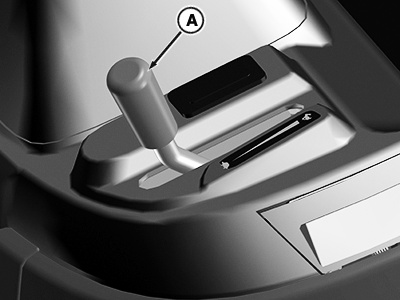

A - Throttle Lever

Use the throttle to change engine speeds. Use the throttle in conjunction with the tachometer to set engine speeds.

  • Increase Engine Speed - Push throttle lever (A) towards the front of the machine.
  • Decrease Engine Speed - Pull throttle lever (A) towards rear of the machine.

SK35149,000110D-19-20170717
