Operate Fuel Shutoff Valve

1. Avoid Injury! Close fuel shutoff valve when performing any type of engine service, during transport of the machine, and during storage.

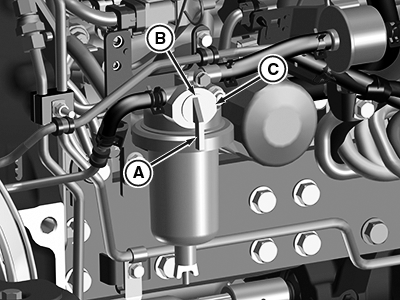

   PY38947-UN-17JUL17

   A - Fuel shutoff Valve Lever

   B - Vertical Position Marked “O”

   C - Horizontal Postion Marked “C”

   Open or close fuel shutoff valve lever (A) as required:

---

• Open Valve: Rotate valve lever pointer to the vertical position (B) marked “O”.
• Close Valve: Rotate valve lever pointer to the horizontal position (C) marked “C”.
