Operate Park Brake

Avoid Injury! Engage park brake and move transmission range shift lever to a position other than N (neutral) before leaving machine unattended. Transmissions will not prevent machine motion without the park brake engaged.

Light on the dash illuminates when park brake is engaged.

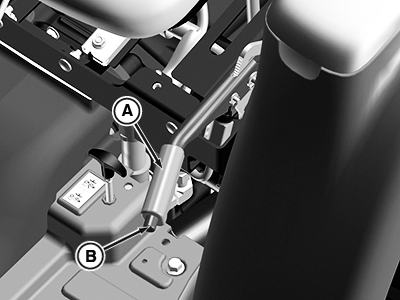

PY38961
PY38961-UN-08AUG17

A - Park Brake Lever

B - Park Brake Release Button

To engage park brake, lift up on park brake lever (A) ensuring that it ratchets up and stays in position.

To release park brake, lift up on park brake lever and depress park brake release button (B). Lower park brake lever, completely, to fully disengage park brake.

SK35149,0001122-19-20170717
