Level Implement Front-to-Rear

1. Park machine safely.

2. When the 3-point hitch is not being used, return center link to the storage hook (A).

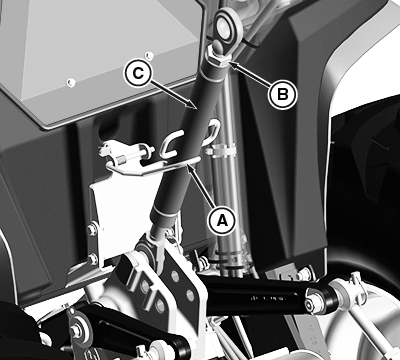

   PY38965-UN-17JUL17

   A - Storage Hook

   B - Locknut

   C - Center Link Body

   Lower implement to ground to relieve pressure on center link.

---




3. Loosen locknut (B).

4. Avoid damage! To avoid threads being damaged, do not turn center link body past the stops.

   Lengthen or shorten the center link as needed. To lengthen or shorten the center link, rotate center link body (C).

5. Tighten locknut (B).
