Level Implement Side-to-Side

  1. Lower any rear mount implement to the ground.

  2. Park machine safely.

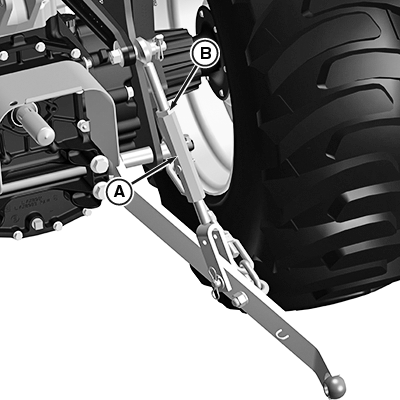

  3. PY38966
    PY38966-UN-10AUG17

    A - Turnbuckle

    B - Locknut

    Loosen locknut (B).


  4. Rotate turnbuckle (A) to raise or lower draft link until 3-point hitch-mounted implement is level from side-to-side.

  5. Tighten locknut (B).
