Adjust Implement Side-to-Side Sway

1. Check implement operator manual procedure for adjusting sway links. When sway links have been properly adjusted, the position of links control the side sway of the implement.

   Lower any rear mount implement to the ground.

2. Park machine safely.

3.

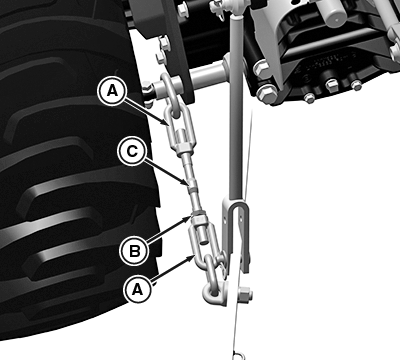

   PY38967-UN-17JUL17

   A - Sway Link

   B - Lock Nut

   C - Sway Link Adjusting Rod

   Loosen lock nut (B).

---




4. To adjust length, rotate the sway link adjusting rod (C).

5. Tighten lock nut (B).
