Remove and Install Side Panels

1. To remove the side panels:

   1. Park machine safely.

   2. Raise hood.

   ---




   3.

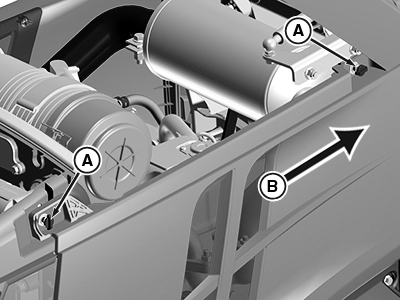

      PY46006-UN-23AUG17

      Left side shown.

      A - Locking Pin

      B - Rear Of Machine

      Turn the locking pin (A) a 1/4 turn to release the side panel.

   4. Slide the side panel toward the rear (B) of the machine until all the tabs clear their mounting slots in the machine. Remove the side panel.

   5. Damage can result to locking pin when closing the hood. Make sure that locking pin is back into place before closing the hood.

      Push locking pin (A) back into place.

2. To install side panels:

   1. Align the panel mounting tabs with the mating slots in the machine.

   2. Pull locking pin and slide the panel forward to install. Turn locking pin a 1/4 turn to lock into place.

   3. Lower the hood.
