Replace Warning Light Bulb

  1. Park machine safely.

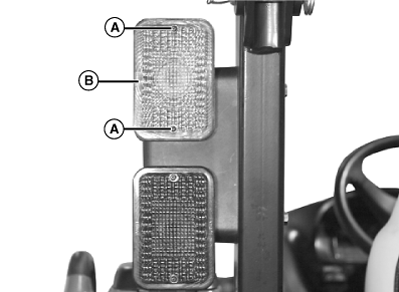

  2. LVAL38750
    LVAL38750-UN-05OCT12

    A - Screw

    B - Lens

    Remove two screws (A) and amber lens (B).

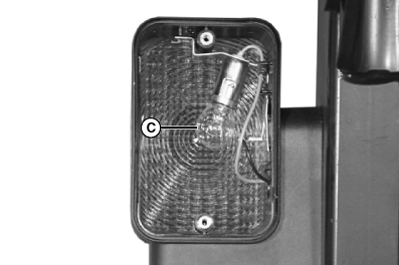

  3. LVAL38751
    LVAL38751-UN-05OCT12

    C - Bulb

    Push up and rotate bulb (C) to remove. Do not twist bulb.


  4. Push up and rotate new bulb into socket.

  5. Check operation of turn signal and warning lights.

  6. Install lens and screws.

SK35149,00011AF-19-20170727
