Check Transmission Oil Level

1. Park machine safely. Allow machine to cool down for at least 1 hour.

2. Avoid damage! Dirt and contamination can enter transmission when checking oil level. Clean area around dipstick before removing.

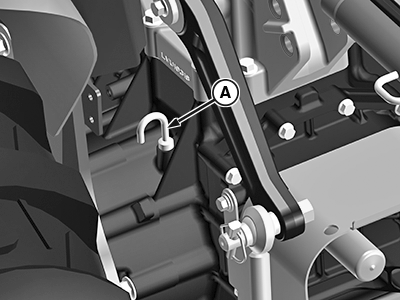

   PY38994-UN-17JUL17

   A - Dipstick

   Pull to remove dipstick (A), at the right side of the transmission. Wipe with a clean cloth.

---




3. Install dipstick.

4. Remove dipstick.

5.

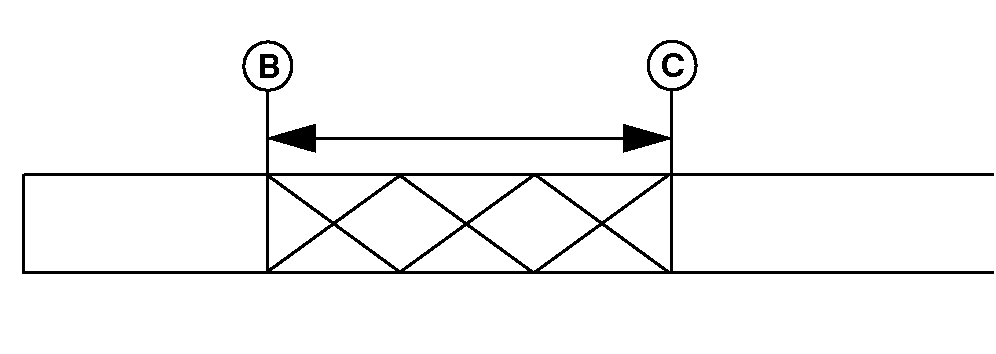

   LVAL38336-UN-21AUG12

   B - Oil Level Mark

   C - Oil Level Mark

   Check oil level on dipstick. Ensure that oil level is between levels (B) and (C) on dipstick.

---




6. Avoid damage! Help prevent dirt and other contaminants from entering the transmission. Clean area around fill cap before removing.

   Do not overfill transmission. Oil expands during operation and could overflow.


   PY38995-UN-17JUL17

   D - Oil Filler Cap

   If oil level is low:
   • Remove filler cap (D).
   • Add recommended oil through fill opening until oil level is correct.



---




7. If oil is above the top mark on the dipstick, drain to the proper level.

8. Install dipstick.

9. Install and tighten filler cap.
