Automatic (AUTO) Exhaust Filter Cleaning (3032E and 3038E)
PY46074-UN-25SEP17

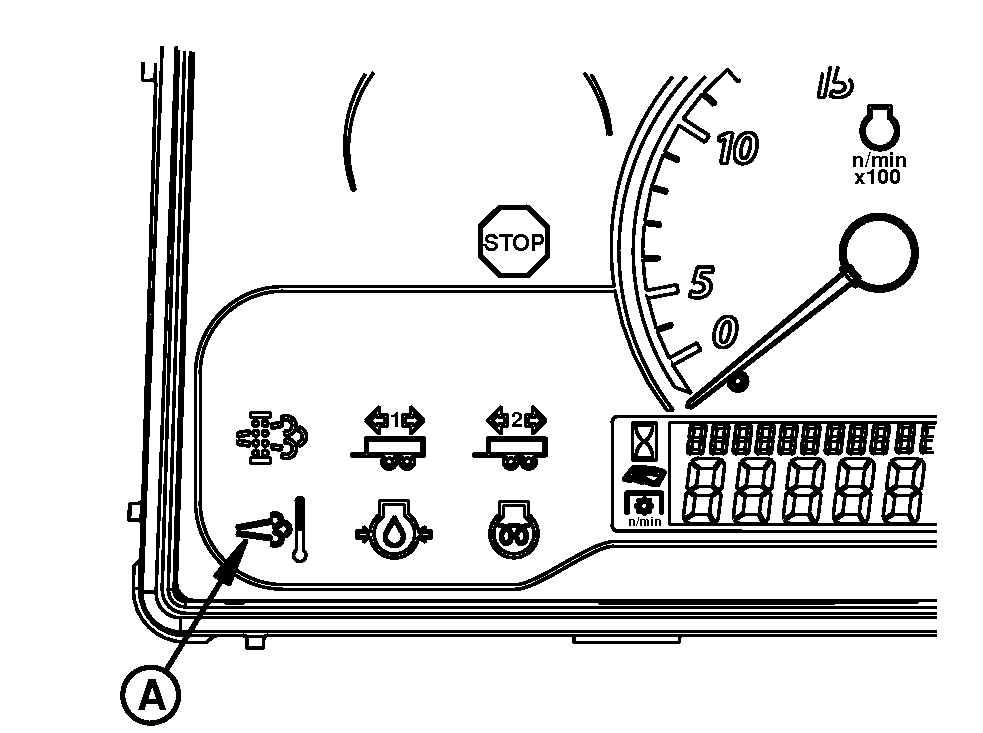

High Exhaust System Temperature Indicator
A - High Exhaust Temperature Indicator
Automatic exhaust filter cleaning is started when soot in the exhaust filter reaches a certain level. This occurs less frequently if the engine is operated for long periods under conditions where passive exhaust filter cleaning takes place. Automatic exhaust filter cleaning is initiated and performed without any intervention on the part of the operator.If the system determines that soot buildup in the exhaust filter requires cleaning, an automatic cleaning is initiated and performed without any intervention on the part of the operator. High Exhaust Temperature Indicator (B) remains illuminated during the exhaust filter cleaning.
Do not disable automatic exhaust filter cleaning unless it is absolutely necessary.
To prevent fires, be sure to routinely clear any combustible
materials (crop debris, animal nests, etc.) from the area of the engine
and exhaust filter. Exhaust filter cleaning uses extremely high temperature.
See also Clean Exhaust Filter Safely in Safety Section.
|
SK35149,00011CC-19-20170801 |
