Clean Dust Unloading Valve

Avoid damage! Ensure air cleaner element and rubber dust unloading valve are installed before operating the engine.

  1. Park the machine safely.

  2. Allow engine to cool.

  3. Access the engine compartment.

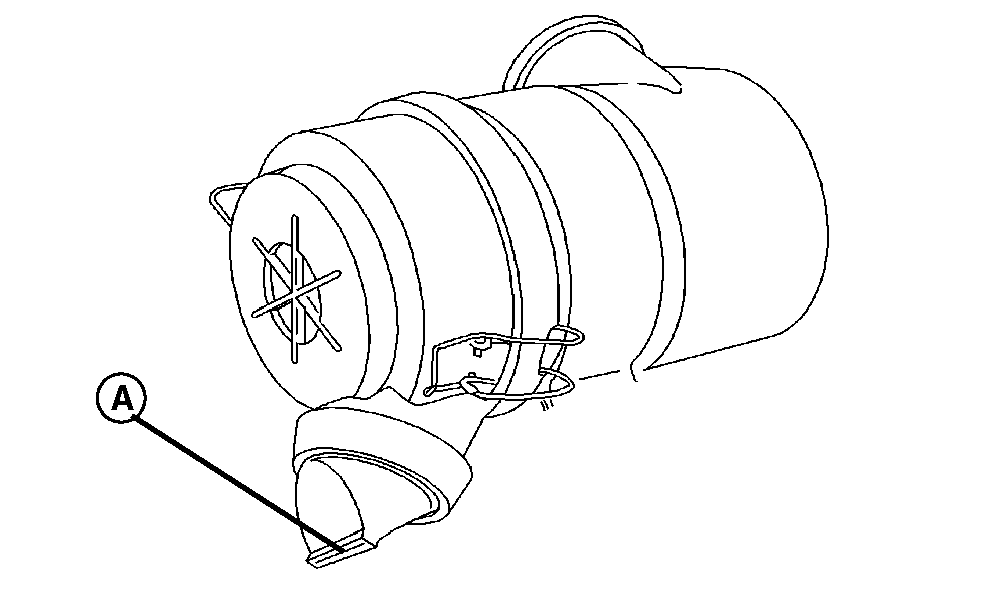

  4. LVAL38312
    LVAL38312-UN-21AUG12

    A - Dust Unloading Valve

    Squeeze dust unloading valve (A) to clean. Remove and replace if damaged.

SK35149,00011E8-19-20170801
