Raise and Lower Roll-Over Protective Structure (ROPS)

Avoid injury! Always wear seat belt when operating machine with folding roll-over protective structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

If canopy or sunshade is attached to the ROPS structure, the weight MUST be limited to 100 lb (45 kg) or less.

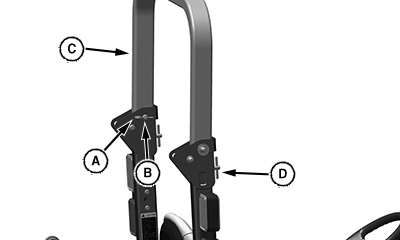

LV25680-UN-30JUN16

ROPS Upright Position

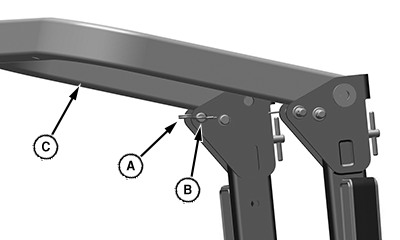

LV25681-UN-30JUN16

ROPS Folded Position

A - Spring Locking Pin

B - Drilled Pin

C - ROPS Crossbar

D - Anti-Rattle T-Handle

Lowering ROPS Crossbar

1. Turn anti-rattle t-handle (D) counterclockwise to relieve tension.

2. Remove spring locking pin (A) and drilled pin (B) on each side of the ROPS.

3. Install drilled pins (B) and spring locking pins (A) and lower crossbar (C) onto drilled pins (B).

Raising ROPS Crossbar

1. Carefully raise ROPS crossbar (C) to the operating position.

2. Align crossbar bracket holes with support bracket holes on each side of the ROPS.

3. Install drilled pins (B) and spring locking pins (A) to lock crossbar (C) in the raised position.

4. Tighten anti-rattle t-handle (D). Repeat for other side of ROPS.
