Check Air Filter Hose

Inspect air intake system hoses and connections each time the air filter is changed, or at a minimum yearly.

1. Park machine safely.

2. Raise hood and remove side panel.

3. Visually inspect hose for cracks and wear. Squeeze hose to check for deterioration. Hose should not be hard and brittle, nor soft or swollen.

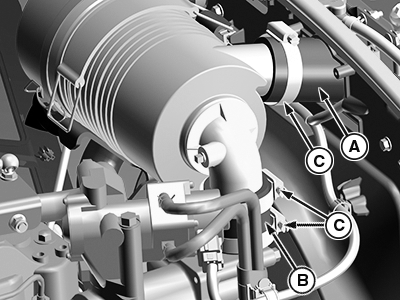

   PY38979-UN-17JUL17

   Hose and Clamps (3025E Tractor)

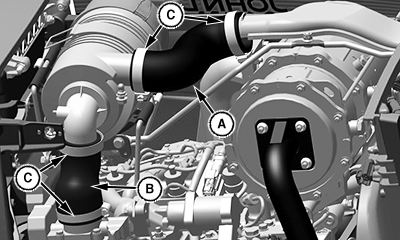

   LV29172-UN-08SEP17

   Hose and Clamps (3032E Tractor)

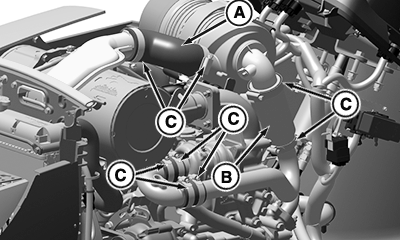

   PY28639-UN-02OCT17

   Hose and Clamps (3038E Tractor)

   A - Air Intake Hose

   B - Air Filter Hose

   C - Hose Clamp

   Check air intake hose (A) and air filter hose (B).

---




4. Tighten hose clamps (C) if necessary.

5. Lower hood.
