Check Radiator Hoses and Clamps

1. Park machine safely.

2. Raise hood.

3. Remove right and left-hand side panels.

4. Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.

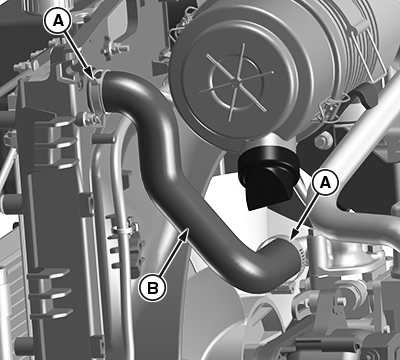

   PY38987-UN-17JUL17

   Upper Radiator Hose—3025E Shown

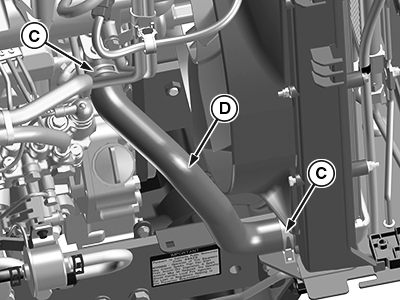

   PY38988-UN-17JUL17

   A - Hose Clamp

   B - Upper Radiator Hose

   C - Hose Clamp

   D - Lower Radiator Hose

   Check upper radiator hose (B) for damage or cracking. Replace if necessary.

---




5. Check hose clamps (A) as needed.

6. Check lower radiator hose (D) for damage or cracking. Replace if necessary.

7. Check hose clamps (C) as needed.

8. Install right and left-hand side panels.

9. Lower hood.
