Replace Relays and Fuses

Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amperage rating.

Locate Fuses and Relays

All electrical circuits are protected by fuses. ampere rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuses
Fuse Rating	Color
10 A	Red
15 A	Blue
20 A	Yellow
30 A	Green

Fuse Location

1. Park machine safely.

2. Remove left side panel.

3.

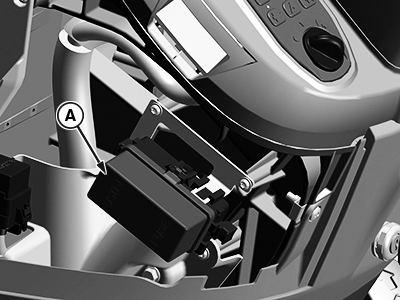

   PY38992-UN-17JUL17

   A - Load Center Cover

   Remove load center cover (A).

---




4. Identify fuse or relay in the fuse block.

5. Pull out the defective relay or fuse.

6. Replace with the new relay or fuse.

7. Install load center cover.

8. Install side panel.

Fuse and Relay Size and Function

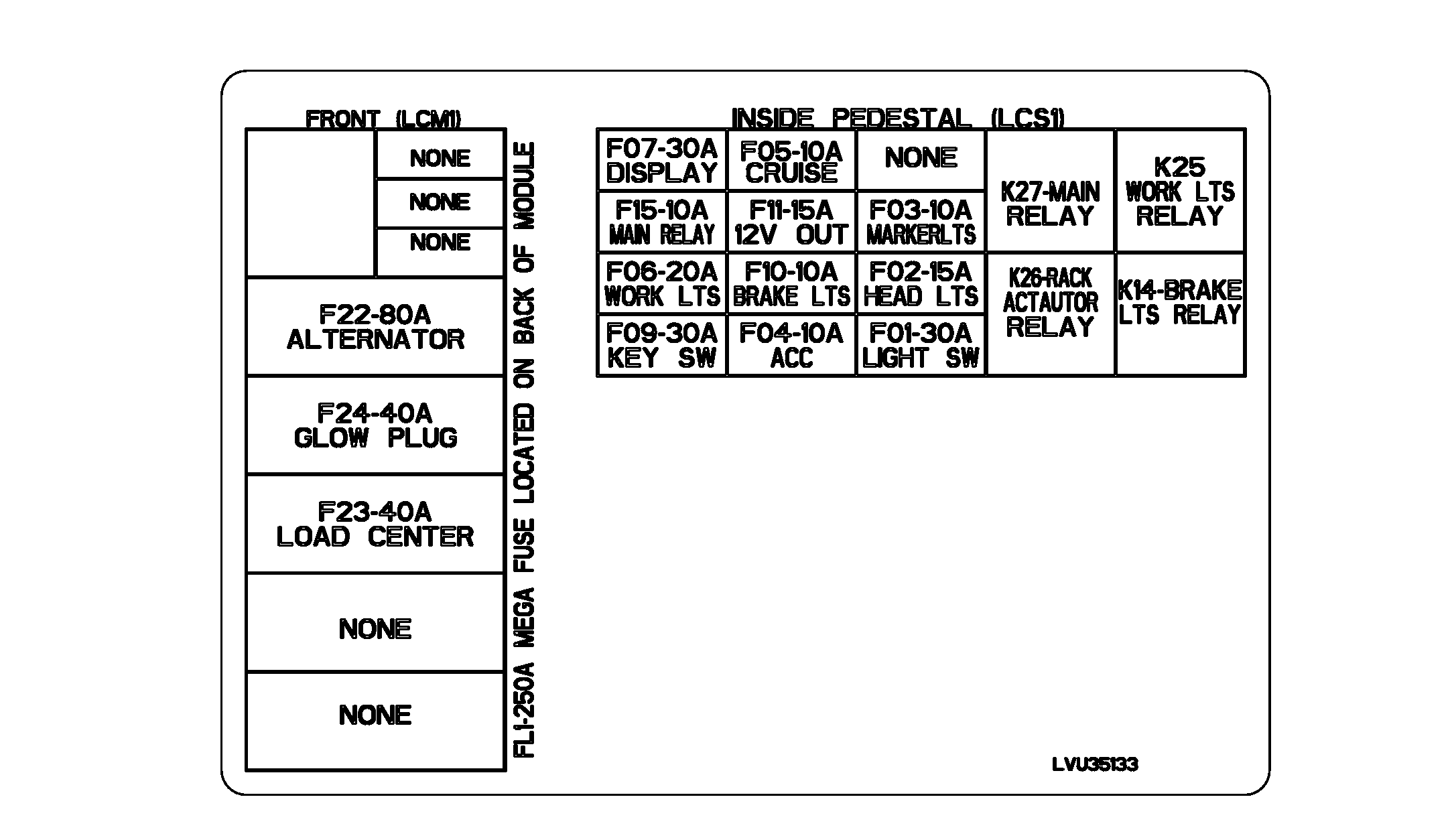

LV29458-UN-28SEP17

Load Center - 3025E

F01 - Light Switch (30A)

F02 - Headlight Fuse (15A)

F03 - Marker Lights Fuse (10A)

F04 - Accessory (10A)

F05 - Cruise Control Fuse (10A)

F06 - Work Lights Fuse (20A)

F07 - Display (30A)

F09 - Key Switch (30A)

F10 - Brake Light (10A)

F11 - 12V Outlet (10A)

F15 - Main Relay (10A

F22 - Alternator (80A)

F23 - Load Center (40A)

F24 - Glow Plug (40A)

K14 - Brake Lights Relay

K25 - Work Lights Relay

K26 - Rack Actuator

K27 - Main Relay

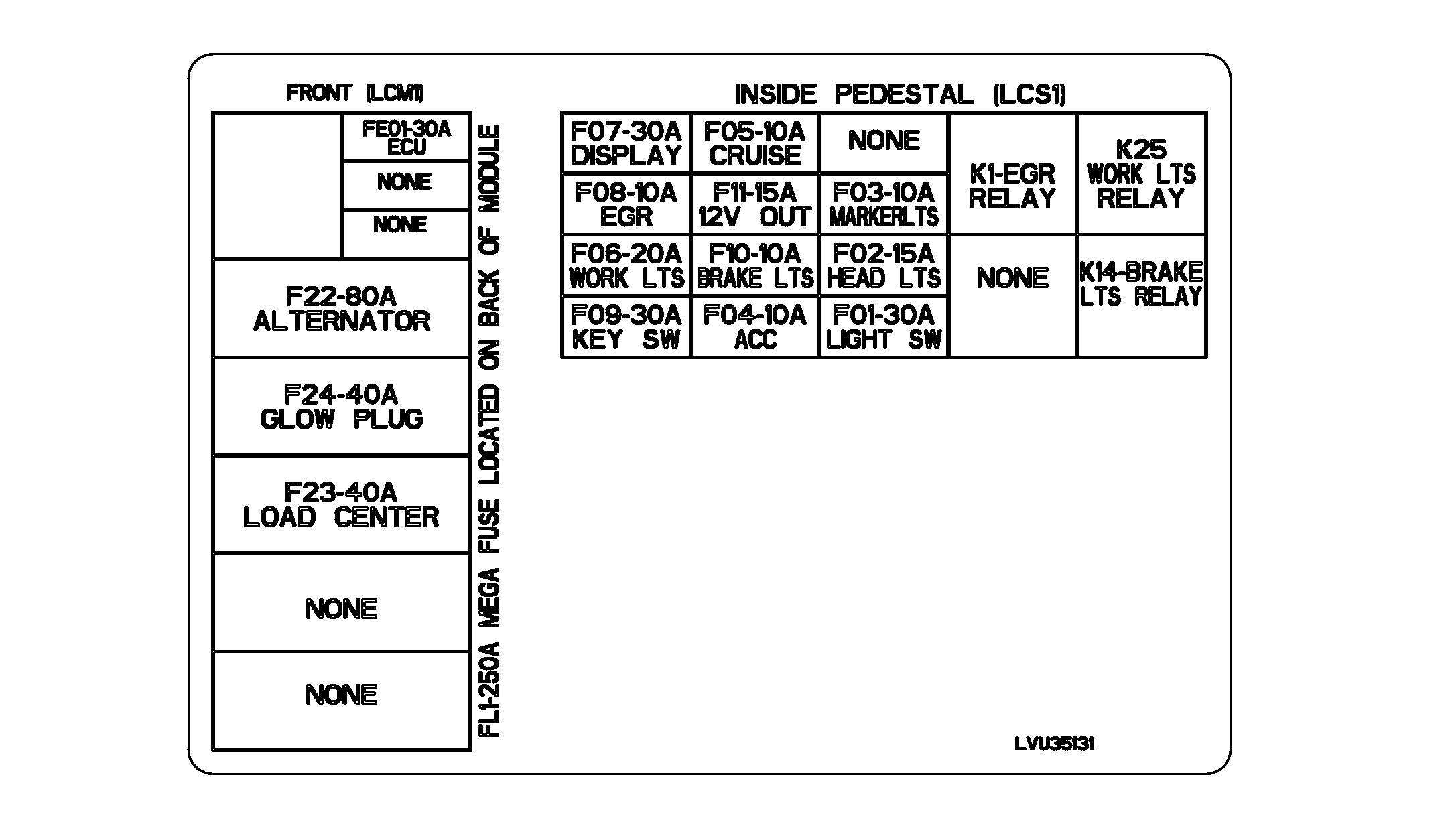

LV29456-UN-28SEP17

Load Center - 3032E and 3038E

F01 - Light Switch (30A)

F02 - Headlight Fuse (15A)

F03 - Marker Lights Fuse (10A)

F04 - Accessory (10A)

F05 - Cruise Control Fuse (10A)

F06 - Work Lights Fuse (20A)

F07 - Display (30A)

F08 - EGR Fuse (10A)

F09 - Key Switch (30A)

F10 - Brake Light (10A)

F11 - 12V Outlet (10A)

F22 - Alternator (80A)

F23 - Load Center (40A)

F24 - Glow Plug (40A)

FE01 - ECU (30A)

K1 - EGR Relay

K14 - Brake Lights Relay

K25 - Work Lights Relay
