Hood Cowl Removal and Installation


Removal

  1. Park machine safely.

  2. Open hood.

    Cowl seal can be damaged if hood is not opened before removal and installation of cowl

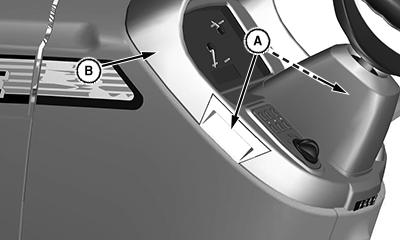

  3. LV29589
    LV29589-UN-19JAN18

    A - Hood Cowl Latch

    B - Hood Cowl

    Pull hood cowl latch (A) out on both sides.


  4. Slide hood cowl (B) up.


Installation

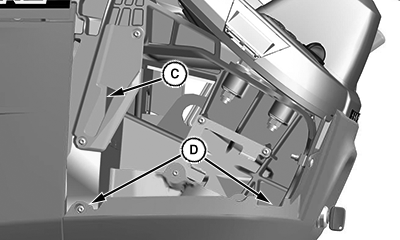

  1. LV29590
    LV29590-UN-19JAN18

    C - Alignment Slots

    D - Alignment Slots

    Align hood cowl tabs with alignment slots (C and D).


  2. Gently slide cowl into position.

  3. Pull out hood cowl latch and release.

  4. Close hood.

UP00731,00004BF-19-20180119
