Remove Boom And Swing Lock

1.
   LV27205-UN-06JAN17


   LV29819-UN-13DEC17

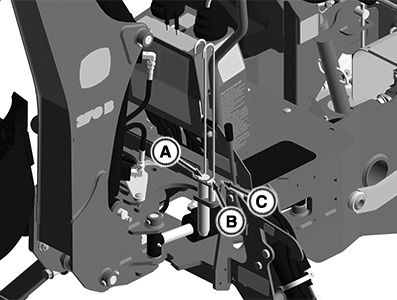

   Storage Location

   A - Boom Lock Pin

   B - Swing Lock Pin

   C - Storage Location

   From operator seat, remove boom lock (A) and swing lock (B).

---

2. Store pins in storage location (C).
