Backhoe Specifications

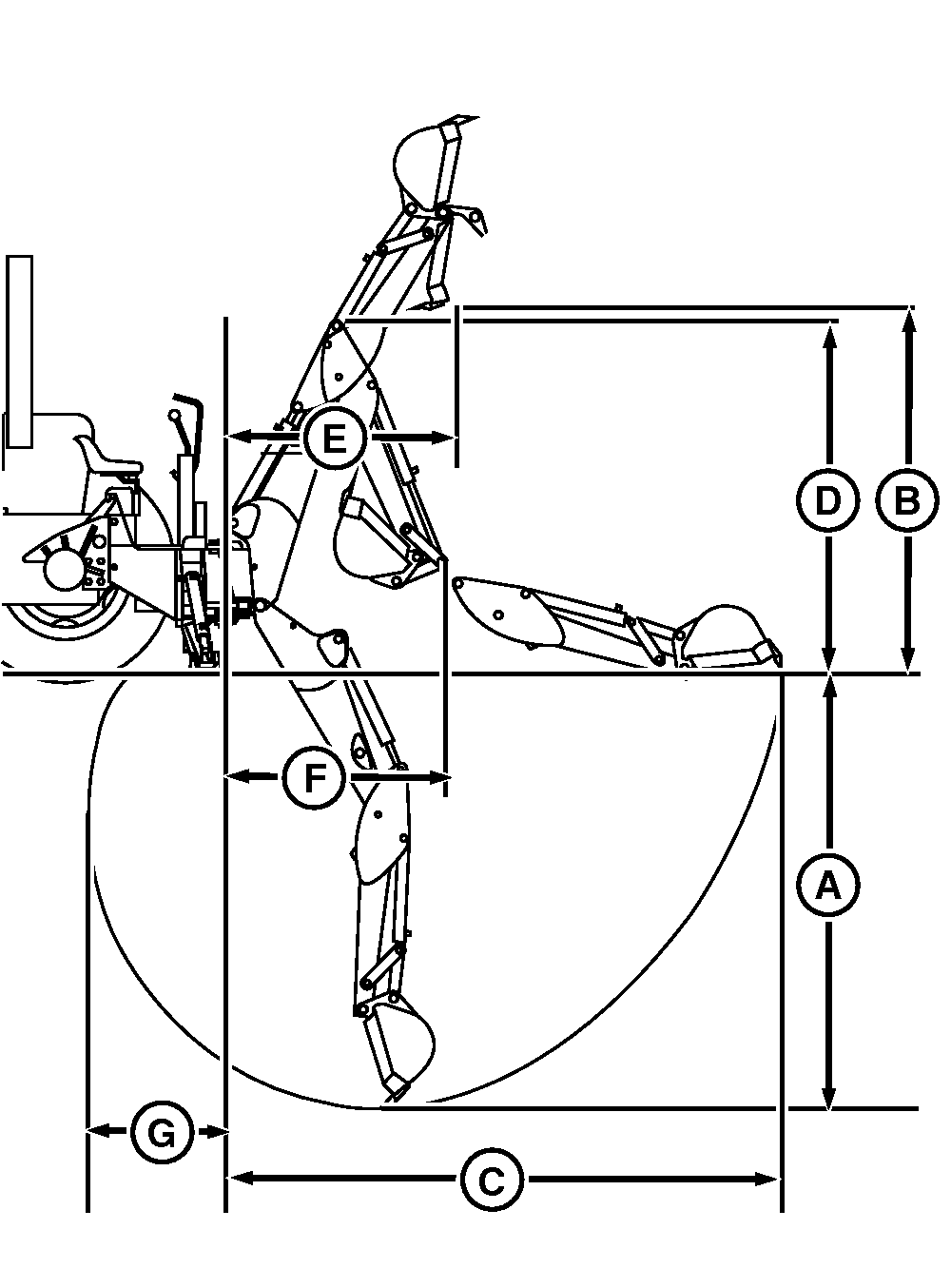

LV25388-UN-18MAY16

A - Digging Depth

B - Loading Height

C - Reach from Center Line of Swing Pivot

D - Transport Height

E - Loading Reach

F - Transport Overhang

G - Undercut

NOTE: Dimensions are given for backhoe with boom pivot pin 30 cm (12 in.) above ground.

Item	Measurement	Specification
Backhoe
A—Digging Depth	Depth	2080 mm (82 in)
B—Loading (Bucket at 60°)	Height	1790 mm (70.5 in)
C—Reach from Center Line of Swing Pivot	Distance	2972 mm (117 in)
D—Transport Height	Height	1994 mm (78.5 in)
E—Loading Reach (Bucket at 60°)	Distance	1175 mm (46.3 in)
F—Transport Overhang	Length	1100 mm (42 in)
G—Undercut	Length	43 cm (17 in.)
Bucket	Rotation	180°
Swing Arc	Angle	150°
Hydraulic Stabilizer Spread (Raised)	Width	approx. 1175 mm approx. (46.3 in)
Hydraulic Stabilizer Spread (Lowered)	Width	approx. 1879 mm approx. (74 in)
Boom1	Lift	136.8 kg. (301 lb)
SAE Dipperstick Digging	Force	7.02 kN (1577 lbf)
SAE Bucket Digging	Force	11.98 kN (2692 lbf)

Buckets

Item	Measurement	Specification
20 cm (8 in.) Bucket
SAE Struck	Capacity	0.011 m3 (0.42 ft3)
Heaped	Capacity	0.013 m3 (0.46 ft3)
30 cm (12 in.) Bucket
SAE Struck	Capacity	0.019 m3 (0.66 ft3)
Heaped	Capacity	0.022 m3 (.76 ft3)
41 cm (16 in.) Bucket
SAE Struck	Capacity	0.025 m3 (0.90 ft3)
Heaped	Capacity	0.030 m3 (1.06 ft3)

Recommended Lubricants

• Gear Oil
  • John Deere Low Viscosity Hy-Gard®
• Grease
  • John Deere Moly High Temperature EP Grease
  • John Deere High Temperature Grease
  • John Deere Grease Gard™

NOTE: Specifications and design are subject to change without notice.
