Install and Remove Slow Moving Vehicle (SMV) Sign

Install Slow Moving Vehicle (SMV) Sign

  1. NOTE: Use the SMV sign when transporting the backhoe on roads.

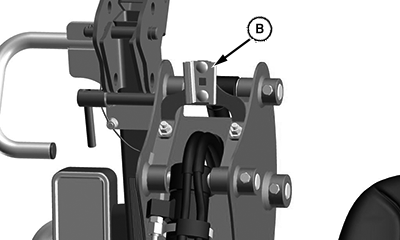

    LV27208
    LV27208-UN-06JAN17

    B - Bracket

    Install SMV sign into bracket (B) on the dipperstick.

Remove Slow Moving Vehicle (SMV) Sign

  1. Remove SMV sign from the backhoe dipperstick bracket (B).

  2. Retain SMV sign for later installation on backhoe.

GS25068,0003DD5-19-20180130
