Transport Backhoe

LV27205-UN-06JAN17

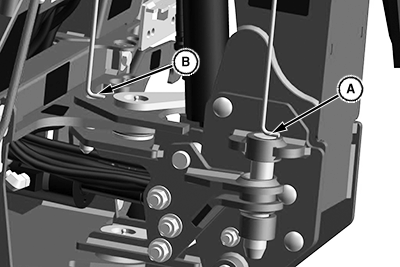

A - Boom Lock Pin

B - Swing Lock Pin

1. Fully raise and center the boom.

2. Fully retract the dipperstick.

3. Curl the bucket back into dipperstick.

4. From the operator seat, install boom lock pin (A) and swing lock pin (B).

5.
   LV29817-UN-13DEC17

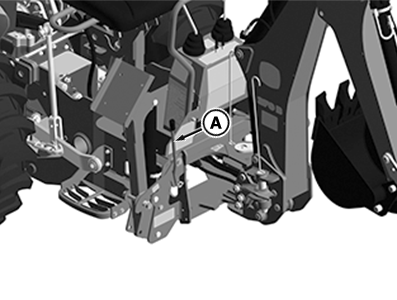

   A - Lock

   To lock the stabilizers in the transport position, raise both stabilizers and pull stabilizer lock (A) on both sides to lock.

---




6. Install SMV sign on the backhoe.
