Storing

CAUTION: Avoid injury! Fuel vapors are explosive and flammable. Engine exhaust fumes contain carbon monoxide and can cause serious illness or death:

• Run the engine only long enough to move the machine to or from storage.
• Machine fires and structure fires can occur if:
  • If machine is stored before allowing it to cool.
  • If debris is not removed from around the engine and muffler.
  • If stored near combustible materials.
• Do not store vehicle with fuel in the tank inside a building where fumes may reach an open flame or spark.
• Allow the engine to cool before storing the machine in any enclosure.

• Position boards under bucket and backhoe frame to prevent corrosion.
• Store backhoe in clean, dry place.
• Keep hydraulic hoses off ground and not kinked.
• Clean backhoe with water and air pressure.
• Paint worn or scratched areas.
• Lubricate all grease points.
• Keep swing lock pin in locked position.
• Coat exposed cylinder rods and hooks on the backhoe with thin film of grease.
• Put waterproof cover over backhoe if stored outside.

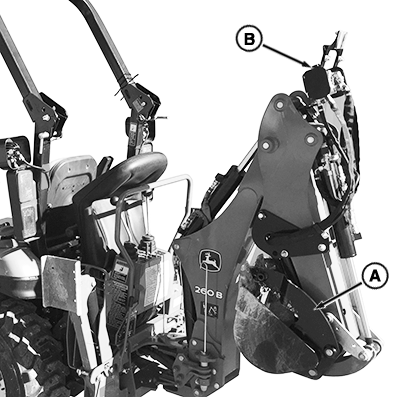

Storing Backhoe Thumb (If Equipped)

LV30540-UN-14MAR19

Storage Position for Thumb
