Removing 3-Point Hitch

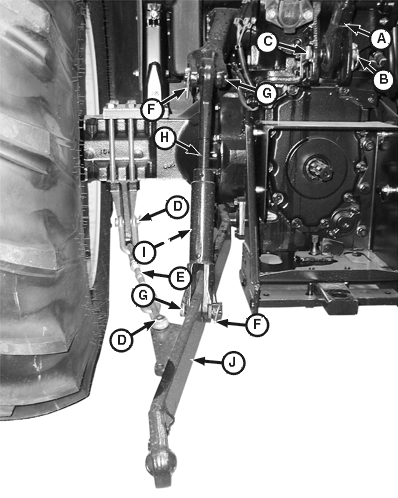

1. Remove hitch pin (B), center link pin (C) and center link (A).

2. Remove cotter pins, clevis pins (D) and sway chain (E).

3. Remove hitch pins (F), pins (G) and lift link (H). Lower draft link to ground.

4. Remove roll pin and nut (I) and draft link (J).

5. Repeat Steps 2-4 on other side of 3-point hitch.


A-Center Link
B-Hitch Pin
C-Pin
D-Clevis Pin (4 used)
E-Sway Chain (2 used)
F-Hitch Pin (4 used)
G-Pin (4 used)
H-Lift Link (2 used)
I-Nut (2 used)
J-Draft Link (2 used)

LV5811

OUO1043,0000208 -19-13DEC00-1/1
